300 Litre Sewage Pumping Station - 6 Meter Lift

RAX300L - 300 Litre Sewage Pumping Station – Compact Domestic Pump Station for Wastewater & Sewage

Suitable for domestic and commercial use

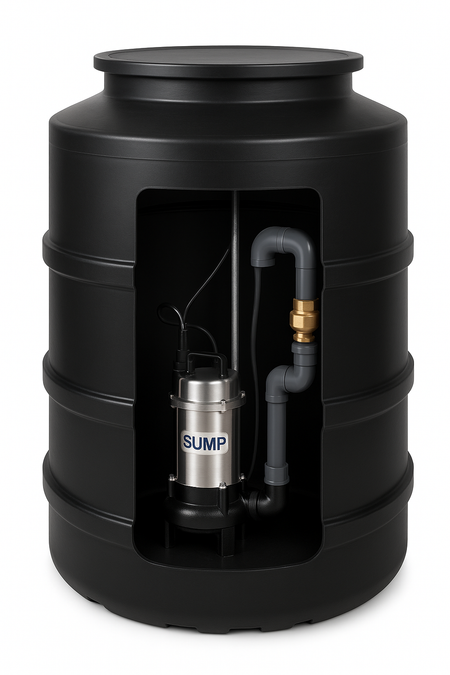

The RAX300L - 300 Litre Sewage Pumping Station is a fully packaged pump station designed for any property where gravity drainage is not possible. Ideal for both foul water (sewage) and surface water applications, this compact system collects waste in a durable underground chamber before pumping it safely to the main sewer line. Built to meet BSEN752-6 standards, the unit provides reliable operation and includes a 24-hour emergency storage capacity, making it a dependable solution for domestic drainage challenges.

Perfect for home extensions, garden rooms, outbuildings, and small residential projects, the RAX300L 300 Litre station is engineered for quick installation and smooth, trouble-free performance. It is particularly suited to locations where waste or water needs to be lifted from a level lower than the mains sewer or an existing septic system. The unit arrives as a complete package—simply connect your inlet and discharge pipework.

A robust submersible pump with 50 mm solids-handling capability ensures the station can manage domestic sewage with ease, providing long-term reliability and peace of mind.

Key Features of the FS Micro 300 Litre Pumping Station

Pump Specifications

• Heavy-duty cast iron and stainless steel construction

• 50 mm (2") solids handling for effective sewage transfer

• Coolant-filled motor for continuous operation

• Durable mechanical seal

• Supplied with a 10 m power cable

• Maximum pump lift: 6 metres (Need more lift? -  Select to upgrade)

• Maximum flow rate: 5 litres per second

• Comes with a float switch for automatic activation

Tank Specifications

• Tough, corrosion-resistant polyethylene tank

• 300-litre capacity for domestic installations

• Pedestrian-rated screw-down lid

• 110 mm / 160 mm inlet seal, allowing onsite drilling

• 40 mm cable duct

• Internal 2" pipework

• Fitted with a 2" non-return valve

• Includes 2" quick-release coupling

• Additional 2" cable duct


Why Choose the RAX300L 300 Litre Pump Station?

• Ideal for domestic sewage pumping

• Compact size suited to small drainage applications

• Fully packaged for fast, simple installation

• Designed for locations below the main sewer line

• Reliable performance with 50 mm solids handling pump

Technical Specifications

• Diameter: 610 mm

• Material: High-strength Polyethylene

• Shape: Round

• Tank Type: Stock tank design

• Installation: Suitable for below-ground applications

• Recommended Use: Sewage and wastewater storage/pumping

• Pump Configuration: Single-pump setup

Suitable for

• Up to 2 x bathrooms and 1 x kitchen

• Home extensions

• Garden rooms and outdoor buildings

• Small domestic applications

• Areas situated below the main sewer level

• Properties needing sewage or wastewater transfer
